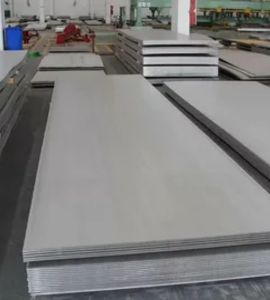

Boikanyo Sheets and Plates, located in Cape Town, South Africa, is a reputable manufacturer and supplier of stainless steel 316Ti sheets and plates. They pride themselves on delivering top-notch products that are built to withstand corrosion, handle high temperatures, and last for years. Using cutting-edge processing techniques, the company ensures that their 316Ti sheets and plates have an outstanding surface finish, precise dimensions, and robust mechanical properties. These titanium-stabilized stainless steel products are perfect for industries that require strong resistance to intergranular corrosion and high-temperature performance, such as chemical processing, marine applications, and power generation.
The composition of stainless steel 316Ti sheets and plates includes 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a touch of titanium (usually around 0.5%). This titanium addition helps stabilize the material against carbide precipitation when exposed to high temperatures, boosting its corrosion resistance. These sheets boast a tensile strength ranging from 515 to 690 MPa and a yield strength between 205 and 310 MPa, along with impressive ductility and creep resistance. Their unique makeup makes them ideal for long-term use in environments that contain oxidizing agents and chlorides.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

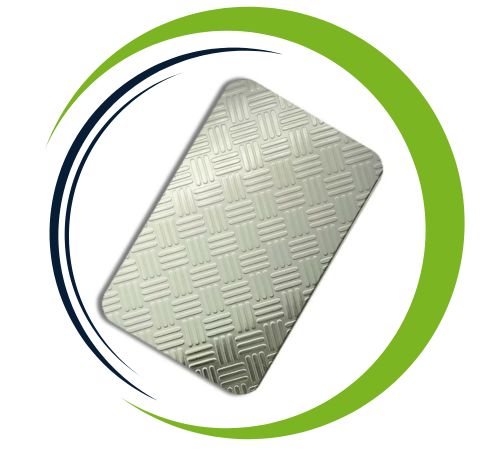

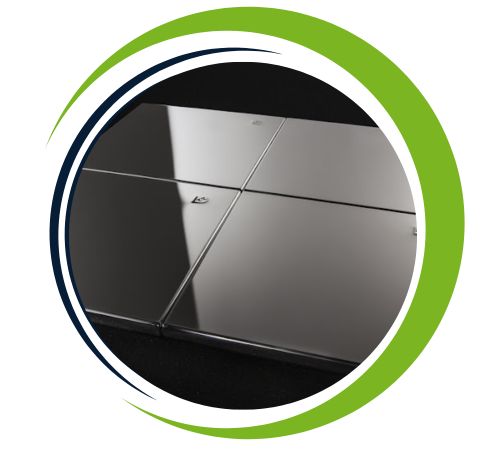

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

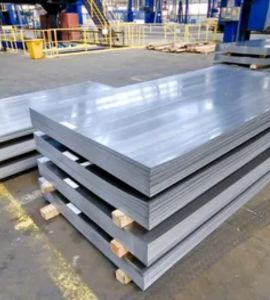

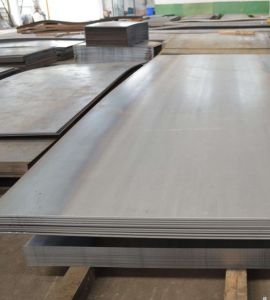

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

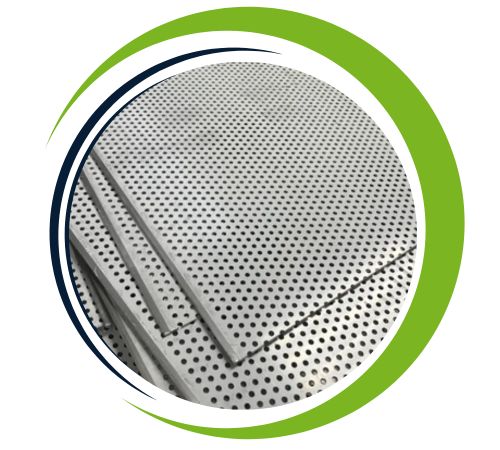

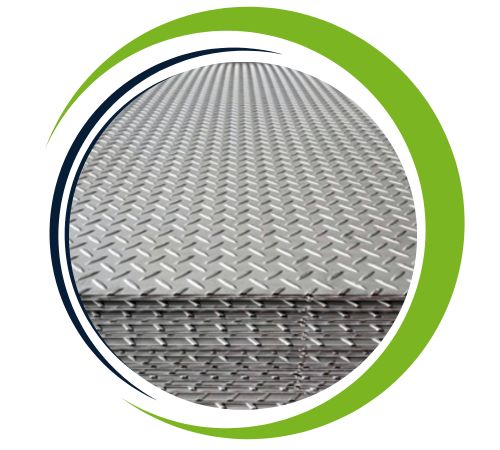

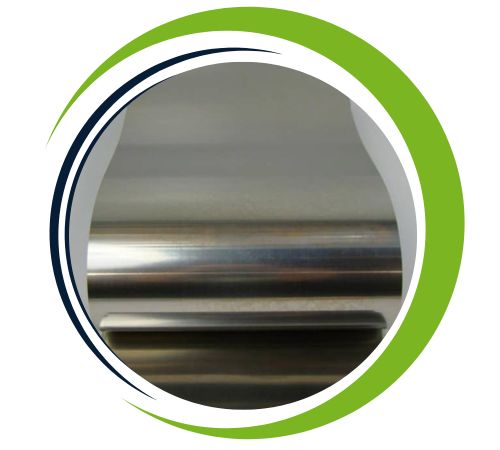

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 316Ti sheets and plates offer exceptional advantages, including resistance to pitting, crack corrosion and excellent intergranular corrosion even at elevated temperatures The addition of titanium ensures stability against carbide precipitation, making it more difficult in rough environments. These sheets are strong, have excellent high-temperature strength and mechanical performance, making them ideal for complex applications. They resist oxidation and scaling, providing durability in marine, chemical and industrial applications. In addition, they are easy to manufacture, weld and maintain, providing cost effective and reliable for structural and process equipment applications.
You’ll find stainless steel 316Ti sheets and plates commonly used in heat exchangers, pressure vessels, chemical tanks, and exhaust systems, thanks to their exceptional strength and resistance to corrosion. They’re also a go-to choice in marine settings, food processing facilities, and pharmaceutical equipment, where hygiene and durability are paramount. Plus, their high resistance to scaling and sensitization makes them perfect for welded structures and components that face elevated temperatures. All in all, 316Ti sheets and plates provide a dependable solution for both structural needs and high-performance industrial applications.
