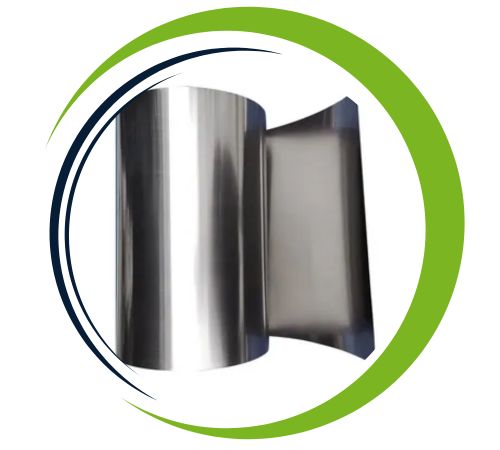

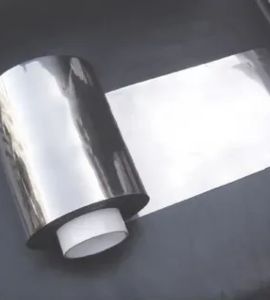

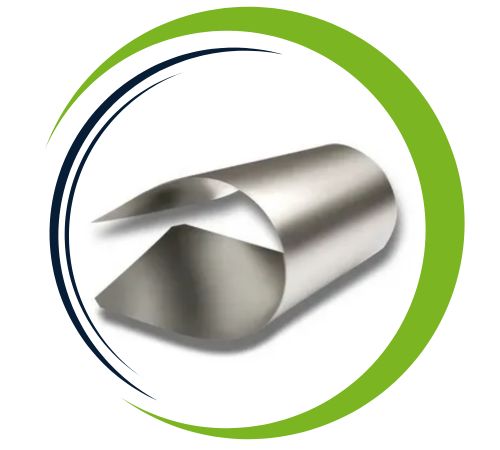

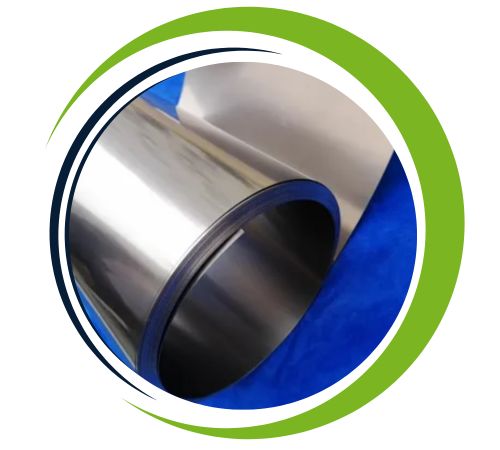

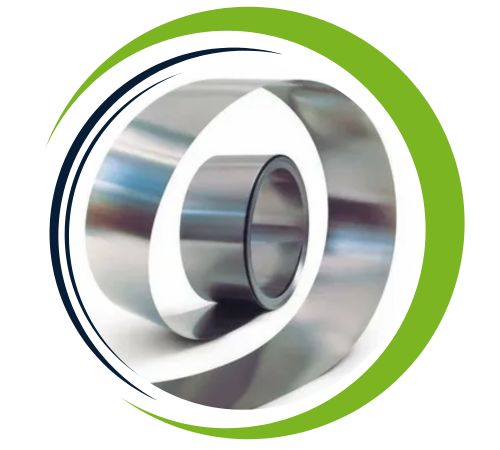

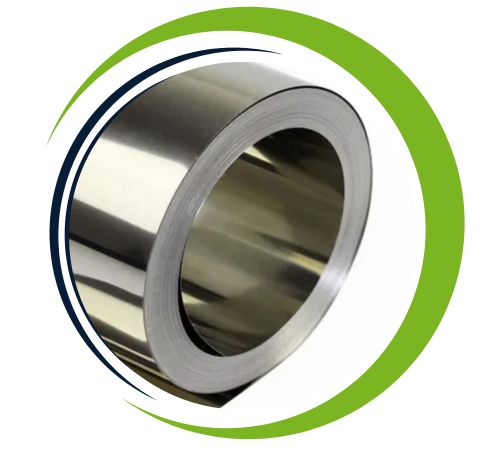

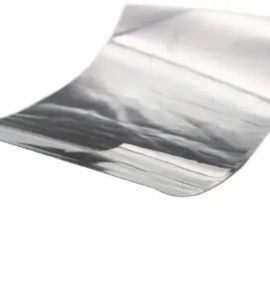

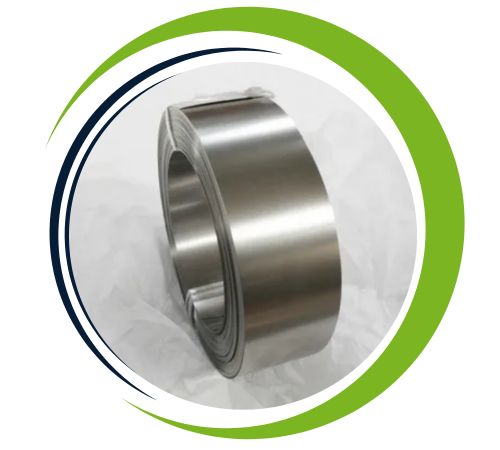

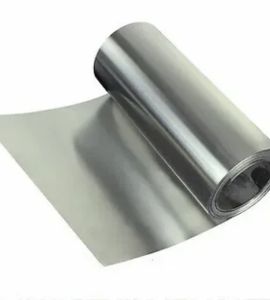

Boikanyo Sheets and Plates is a reputable manufacturer and supplier company from Cape Town, South Africa, dealing in top-quality titanium products such as Grade 5 titanium foils. Famous for their high strength, light weight, and resistance to corrosion, these foils are designed to serve the needs of high-performance industries. Boikanyo’s dedication to excellence and accuracy means that each titanium Grade 5 foil adheres to strict industry specifications. Whether providing aerospace, medical, or industrial customers, the company provides reliable and effective material solutions customized for individual applications, making it a trusted partner for high-end engineering requirements.
Standards : ASTM B265 / ASME SB265
Width : 3.2mm – 1500mm
Form : Coils, Foils, Rolls, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Thickness : 0.1mm to 12 mm Thk
Length : 500mm to 12000mm
Width : 100mm to 3000mm
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7164 / 3.7165 | R56400 |
| Grade | C | Ti | O | Fe | Ai | V |
| Titanium Gr. 5 | 0.25 max | 90 min | 0.2 max | 0.25 max | 6 min | 4 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Titanium Grade 5 foils, or Ti-6Al-4V, consist of about 90% titanium, 6% aluminum, and 4% vanadium. The alloy has a high tensile strength of about 900–1000 MPa, good fatigue resistance, and good corrosion resistance in most environments. It is stable at elevated temperatures and has moderate formability and weldability. With a density of approximately 4.43 g/cm³, Titanium Grade 5 foils have high strength with minimal weight, which makes them suitable for demanding structural uses where mechanical performance and resilience are paramount.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Boikanyo Sheets and Plates based in Cape Town, South Africa, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Titanium Grade 5 Foils offer numerous advantages, including exceptional strength-to-weight ratio, making them ideal for lightweight yet durable applications. They exhibit outstanding corrosion resistance, even in harsh environments like seawater and chemicals, ensuring longevity and reliability. Additionally, Grade 5 titanium is highly biocompatible, making it perfect for medical implants and devices. The alloy also maintains high strength at elevated temperatures, offering excellent performance in aerospace and automotive sectors. Its fatigue resistance, low thermal expansion, and resistance to wear and stress make it a versatile and high-performing material for diverse industries.
| Size (mm) | Weight per (Kg) | Size (mm) | Weight per (Kg) |
|---|---|---|---|
| 2000 x 1000 x 2.0 | 32.7 | 2000 x1000 x 0.9 | 14.7 |
| 3000 x 1500 x 1.5 | 55.3 | 2500 x1250 x 0.7 | 17.9 |
| 3000 x 1500 x 2.0 | 73.7 | 2000 x1000 x 1.0 | 16.4 |
| 2500 x 1250 x 1.5 | 38.4 | 2000 x1000 x 0.7 | 11.5 |
| 3000 x 1500 x 3.0 | 112.0 | 2000 x1000 x 1.5 | 24.6 |
| 2500 x 1250 x 2.0 | 51.2 | 2500 x1250 x 0.9 | 23.0 |
| 2000 x 1000 x 2.5 | 40.9 | 2500 x1250 x 1.0 | 25.6 |
| 2500 x 1250 x 2.5 | 63.9 | 3000 x1500 x 1.0 | 36.8 |
| 2500 x 1250 x 3.0 | 77.5 | 3000 x1500 x 1.2 | 44.2 |
| 3000 x 1500 x 2.5 | 92.1 | 2000 x1000 x 1.2 | 19.6 |
| 2000 x 1000 x 3.0 | 49.6 | 2500 x1250 x 1.2 | 30.7 |
Yes, we offer custom sizes for Titanium Grade 5 Foils to meet specific project needs. Our team at Boikanyo Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Titanium Grade 5 foils are employed by industries that need to have high strength-to-weight ratios and resistance to harsh environments. They are utilized in aerospace in the form of turbine blades, airframe parts, and engine components. In medicine, they are utilized as surgical tools, implants, and orthopedic devices because of their biocompatibility. In cars, they maximize performance in racing parts and exhaust systems. Marine hardware, power generation equipment, and high-performance sporting goods are other areas of application where durability, resistance to heat, and lightness are important for maximum functionality and reliability.
