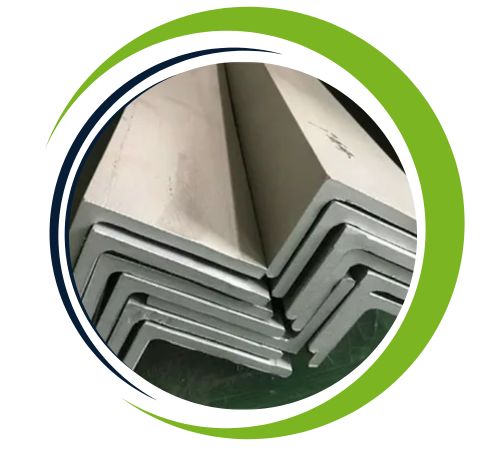

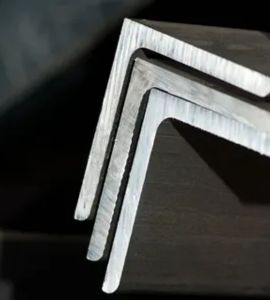

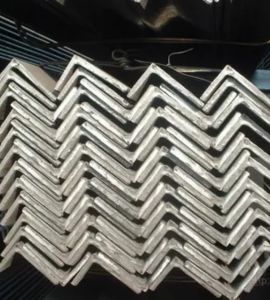

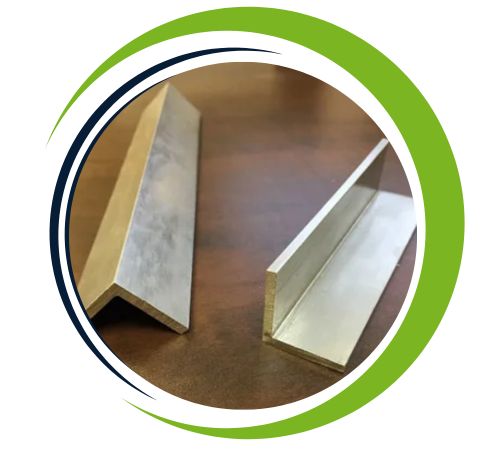

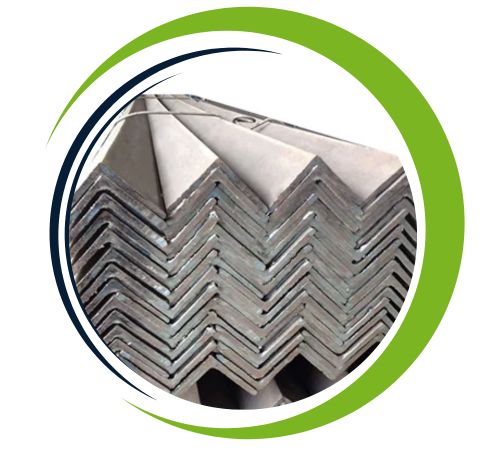

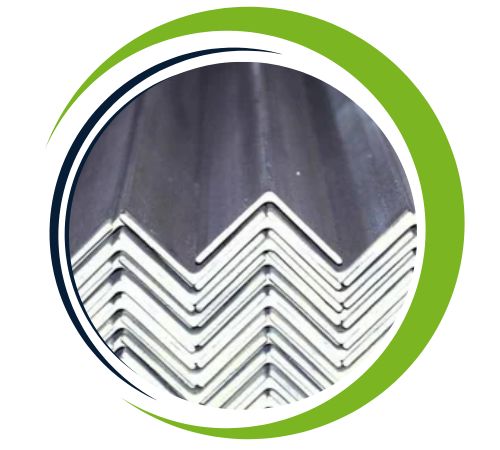

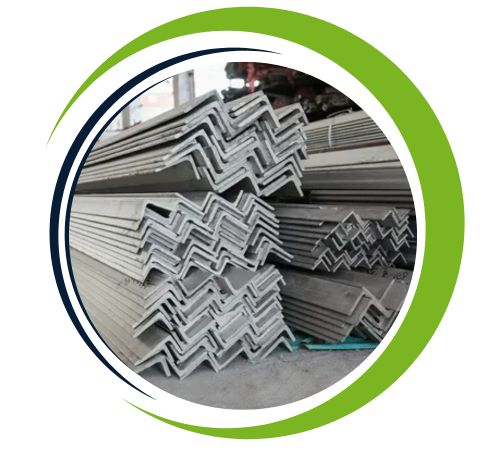

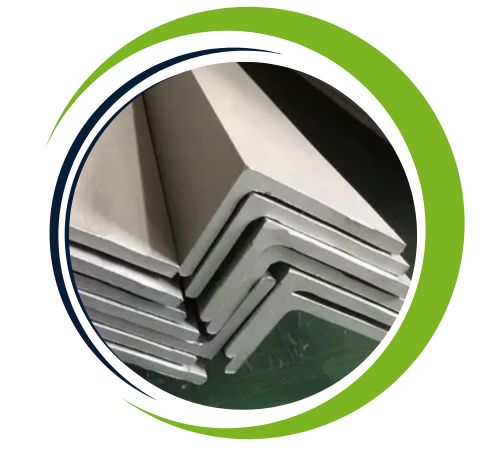

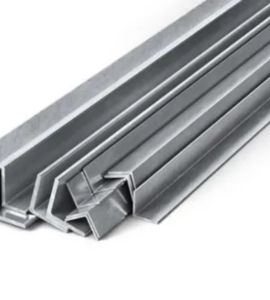

Boikanyo Sheets and Plates, located in Cape Town, South Africa, stands out as a top manufacturer and supplier of **Incoloy 825 Angles**. These angles are celebrated for their remarkable corrosion resistance, impressive strength, and durability, especially in tough industrial settings. Crafted from a nickel-iron-chromium alloy, they are precision-engineered to perform reliably in acidic, marine, and high-temperature environments. Boikanyo Sheets and Plates takes pride in its advanced manufacturing techniques, rigorous quality control, and adherence to international standards, ensuring that every Incoloy 825 angle consistently delivers outstanding performance. The company caters to various industries, including chemical processing, oil and gas, aerospace, and power generation, providing versatile and long-lasting Incoloy 825 angles that are perfect for critical structural and mechanical applications.
**Incoloy 825 Angles** are primarily made up of nickel, iron, and chromium, with added elements like molybdenum, copper, and titanium. This unique blend gives them excellent tensile strength, ranging from 550 to 690 MPa, along with high yield strength and exceptional toughness. These angles are known for their outstanding resistance to pitting, stress corrosion cracking, and oxidation in both acidic and saline conditions. Their mechanical properties ensure they maintain structural integrity even under thermal cycling, mechanical stress, and corrosive exposure, making them ideal for demanding industrial and chemical applications.
Specifications : ASTM B425 / ASME SB425
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Boikanyo Sheets and Plates based in Cape Town, South Africa, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Incoloy 825 angles offer several advantages, making them ideal for harsh environments. They provide outstanding resistance to corrosion, including sulfuric acid, phosphoric acid, and seawater, ensuring durability in chemical and marine applications. The alloy’s high strength and excellent oxidation resistance at elevated temperatures make it suitable for high-stress conditions. Additionally, Incoloy 825 exhibits good weldability and formability, allowing for ease of fabrication. Its resistance to stress corrosion cracking, coupled with enhanced mechanical properties, ensures reliable performance and longevity, making it a preferred choice for industries like chemical processing and power generation.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | Incoloy Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 316 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Incoloy 825 Angle to meet specific project needs. Our team at Boikanyo Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
You’ll find **Incoloy 825 Angles** widely utilized in chemical processing, marine engineering, oil and gas, and aerospace sectors, thanks to their combination of high strength, corrosion resistance, and long-lasting durability. They are perfect for creating structural supports, frameworks, piping supports, valves, pumps, and equipment that come into contact with aggressive chemical media or seawater. Additionally, these angles are used in heat exchangers, chemical plant machinery, and high-performance industrial equipment where reliability and longevity are crucial. Their toughness, formability, and ability to withstand harsh conditions make them a go-to choice for many applications.
