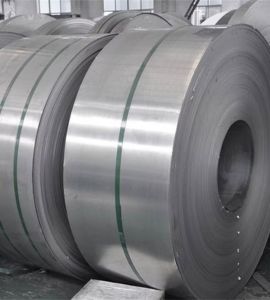

Boikanyo Sheets and Plates, located in Cape Town, South Africa, is a reliable manufacturer and supplier of stainless steel 317L foils. They focus on delivering top-notch products that are designed for outstanding corrosion resistance, durability, and mechanical performance. Using advanced cold rolling and annealing techniques, the company produces precision-engineered 317L foils that boast uniform thickness, a smooth surface finish, and excellent dimensional accuracy. These foils are perfect for use in industries like chemical processing, pharmaceuticals, marine, and food, where materials need to withstand harsh chemicals and high humidity while ensuring a long service life.
Stainless steel 317L foils are low-carbon austenitic stainless steels that contain 18–20% chromium, 11–14% nickel, and 3–4% molybdenum. The molybdenum addition enhances their resistance to pitting, crevice corrosion, and oxidizing environments, making them superior to 316L. With a tensile strength ranging from 485–620 MPa and a yield strength of 170–310 MPa, these foils also offer excellent ductility, weldability, and formability. Their low carbon content helps prevent sensitization during welding, which is crucial for high-integrity applications in corrosive settings.
| SPECIFICATION: | ASTM A240 / SA240 |
| STANDARD | JIS, AISI, ASTM, DIN, GB, EN, ETC |
| SURFACE | 2B, CR, HR, 2D, NO.4, NO.8, MIRROR, BA, NO.1, CHEQUERED, HAIRLINE, BRUSH, ETCHING, ETC. |
| WIDTH | 1000MM, 1219MM, 1250 MM, 1500MM, 2000MM AND Even as per Customers Requirements |
| LENGTH | 2000MM, 2500MM, 3000 MM, 5000MM, 6000MM AND Even as per Customers Requirements |
| THICKNESS | 0.05MM TO 150 MM |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 317L | 0.035 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 15 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 317L foils offer exceptional corrosion resistance, particularly in acidic environments, making them ideal for chemical processing, marine, and pharmaceutical industries. Their low carbon content enhances weldability and reduces the risk of carbide precipitation, ensuring improved performance in high-temperature applications. These foils have excellent formability and are highly resistant to pitting, crevice corrosion, and stress corrosion cracking. With superior strength and durability, Stainless Steel 317L foils are widely used in industries requiring materials that maintain integrity under harsh conditions. Their versatility makes them suitable for various applications, from heat exchangers to reactors.
| GRADE 317L | ||||
|---|---|---|---|---|
| ASTM | DIN | UNS | JIS | GB |
| 317L | 1.4438 | S31703 | SUS317L | X2CrNiMo19-14-4 |
You’ll find stainless steel 317L foils commonly used in chemical tanks, heat exchangers, reactor vessels, pharmaceutical equipment, and marine applications. They’re also great for gaskets, diaphragms, and precision components that face aggressive chemicals or high humidity. Thanks to their blend of corrosion resistance, flexibility, and mechanical strength, these foils are ideal for industrial, food processing, and laboratory applications, as well as for structural or decorative projects that require both durability and resilience against tough environmental conditions.
