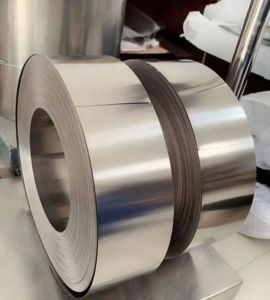

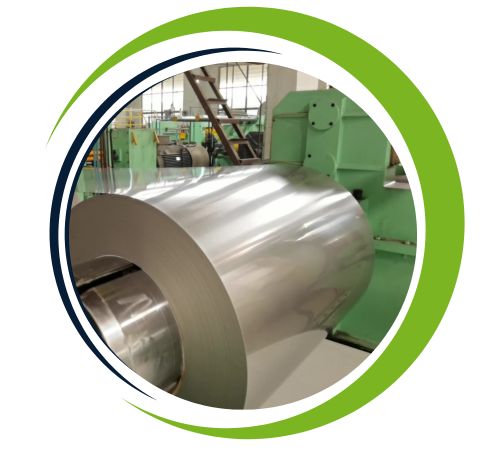

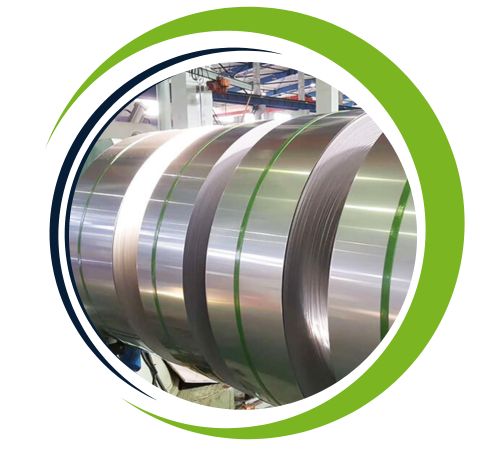

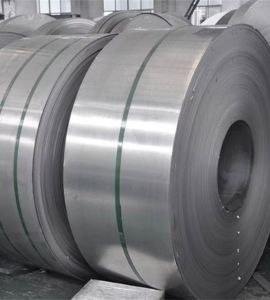

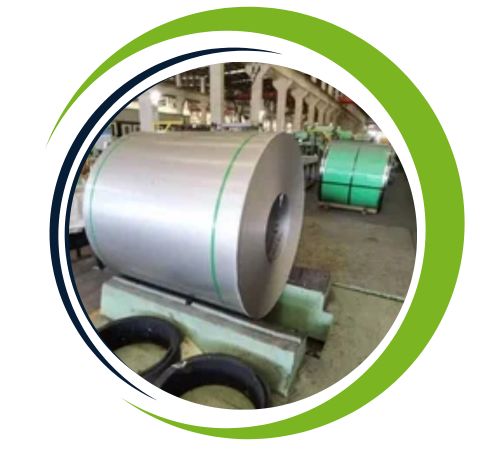

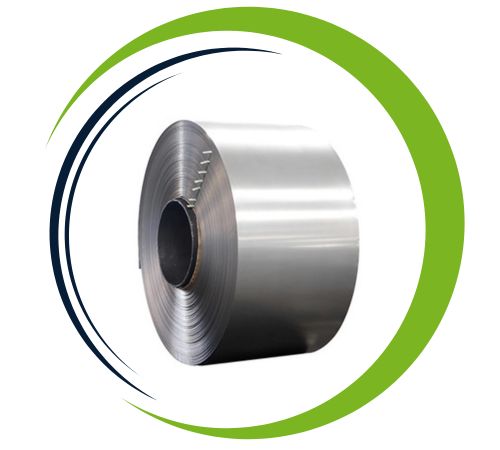

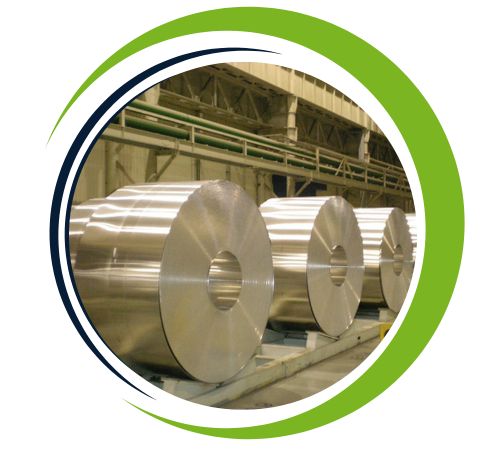

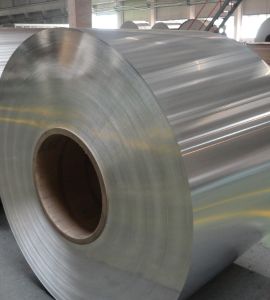

Boikanyo Sheets and Plates, located in Cape Town, South Africa, is a reputable manufacturer and supplier of **Stainless Steel 316 Foils**. They pride themselves on delivering high-quality products that are built to last, offering exceptional durability, corrosion resistance, and outstanding performance even in the toughest environments. These foils are specifically crafted for applications that demand high strength, reliability, and resistance to chemical attacks, making them perfect for industries like marine, chemical, petrochemical, and food processing. With a commitment to international standards and rigorous quality control, Boikanyo Sheets and Plates guarantees that their Stainless Steel 316 Foils provide long-lasting performance, structural integrity, and robust corrosion protection, making them the go-to choice for industrial, structural, and engineering applications that require top-notch stainless steel quality.
**Stainless Steel 316 Foils** are austenitic stainless steel products made up of iron, chromium (16–18%), nickel (10–14%), molybdenum (2–3%), along with trace amounts of carbon, manganese, and silicon. The inclusion of molybdenum significantly boosts resistance to pitting and crevice corrosion in chloride-rich environments. On the mechanical side, Stainless Steel 316 Foils showcase impressive tensile and yield strength, along with excellent ductility, toughness, and fatigue resistance. This unique blend of corrosion resistance, mechanical strength, and weldability makes them ideal for demanding industrial, marine, chemical, and structural applications that require long-term durability and reliability.
| Item | Stainless Steel 316 foil(Hot rolled, cold rolled) | |
| Thickness | 0.025 to 3 mm and as per Customer Requirement | |
| Width | 3 mm to 2000 mm and as per Customer Requirement | |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc | |

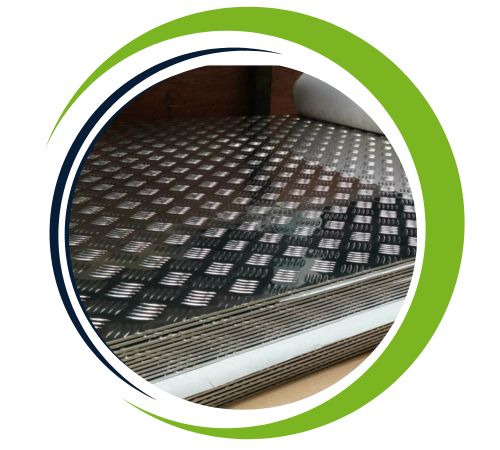

| Surface | the surface and finish of stainless steel 316 foil: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | |
| Package | Shrink-wrapped ,Carton boxes,Wooden pallets,Wooden boxes ,Wooden crates Etc. required. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
|
|
316 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.03 max |
16.00-18.00 |
2.00 – 3.00 |
11.00 – 14.00 |
67.845 min |
| Properties | Metric | Imperial | |
| Tensile strength (transverse at room temperature) | 685 MPa | 99400 psi | |
| Tensile strength (longitudinal at room temperature) | 696 MPa | 101000 psi | |
| Yield strength (transverse at room temperature) | 292 MPa | 42400 psi | |
| Yield strength (longitudinal at room temperature) | 316 MPa | 43700 psi | |
| Compressive yield strength | 365 MPa | 52900 psi | |
| Elastic modulus | 197 GPa | 28573 ksi | |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 | |
| Elongation at break (longitudinal at room temperature) | 56% | 56% | |
| Elongation at break (transverse at room temperature) | 62.50% | 62.50% | |
| Hardness, Rockwell B (transverse at room temperature) | 85 | 85 | |
| Hardness, Rockwell B (longitudinal at room temperature) | 85 | 85 |
Stainless Steel 316 foils offer excellent corrosion resistance, especially against chlorides and other harsh chemicals, making them ideal for marine, chemical, and food processing industries. They are highly durable, with superior strength and resistance to pitting and crevice corrosion. These foils maintain integrity even in extreme temperatures, offering excellent thermal stability. Their excellent weldability and formability make them easy to process into various shapes. Stainless Steel 316 foils are non-magnetic and provide long-term reliability, making them suitable for various industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN | |
| SS 316 | 1.4401 | S31600 | SUS 316 | Z7CND17‐11‐02 | 316S31 / 316S33 | – | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
**Stainless Steel 316 Foils** find extensive use in industries that prioritize corrosion resistance, strength, and durability. In the **marine sector**, they are utilized in shipbuilding, offshore structures, and equipment exposed to seawater. The **chemical and petrochemical industries** rely on them for reactors, heat exchangers, piping systems, and tanks that come into contact with corrosive substances. In **food processing, pharmaceuticals, and industrial machinery**, they ensure hygienic surfaces and robust chemical resistance.
