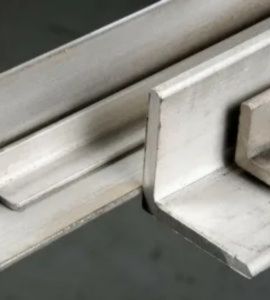

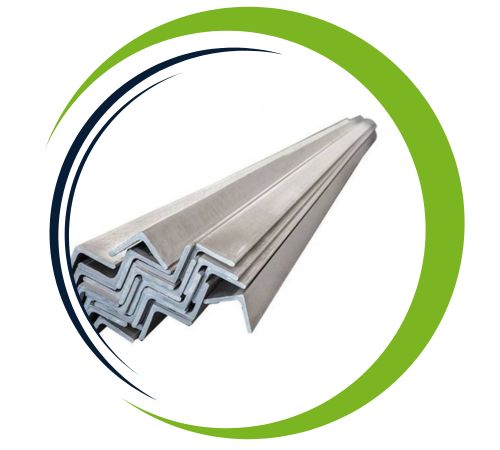

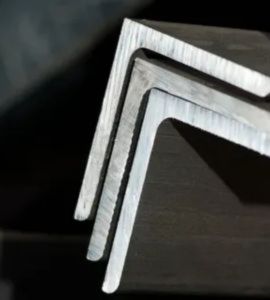

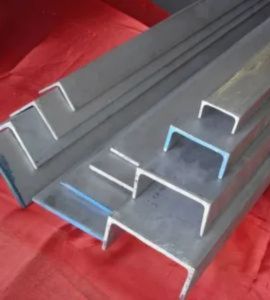

Boikanyo Sheets and Plates stands out as a top manufacturer and supplier of **Titanium Grade 5 Angles** in Cape Town, South Africa. We specialize in delivering high-performance products tailored for demanding industries. Commonly referred to as Ti-6Al-4V, Titanium Grade 5 is the most popular titanium alloy, celebrated for its remarkable strength, resistance to corrosion, and lightweight characteristics. At Boikanyo Sheets and Plates, we pride ourselves on precise engineering, adherence to international quality standards, and offering a range of sizes and finishes to cater to various industrial needs. With their durability, reliability, and extended service life, Titanium Grade 5 Angles find extensive applications in aerospace, marine, chemical, medical, and industrial engineering sectors.
**Titanium Grade 5 Angles** consist of 6% aluminum, 4% vanadium, and the remainder titanium, which boosts their mechanical strength and corrosion resistance. They showcase a tensile strength ranging from 895 to 930 MPa, along with excellent fatigue resistance and outstanding toughness. Despite their impressive strength, they are about 45% lighter than steel, all while maintaining excellent structural integrity. These angles also boast a high melting point, thermal stability, and non-magnetic properties, making them perfect for extreme environments. Their unique blend of durability, formability, and resistance to corrosion guarantees reliable performance in high-stress and corrosive settings.
Dimensions: ASME, ASTM, EN, BS, GB, DIN, JIS, etc
Size : Angle Size : 3/4″ THRU 8″
Channel Size : Base: 80 to 150 mm Side: 40 to 75 mm
Thickness: Angle Thickness: 1/8″ thru 5/8″
Channel Thickness : Base: 5 to 6 mm (depending on size)
Angle Length: Upto 6 Meters Long
Processing: Bar Cutting
Application: Paper Industry, Architucture, Construction, Kitchen Equipment, Pharma, Engineering Industries And Many More

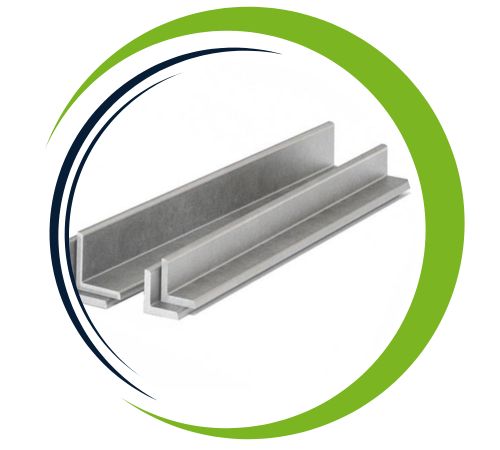

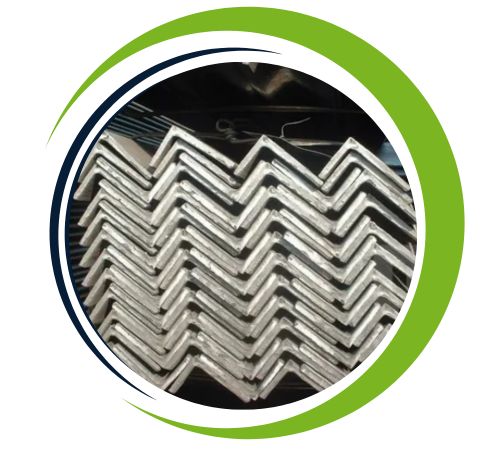

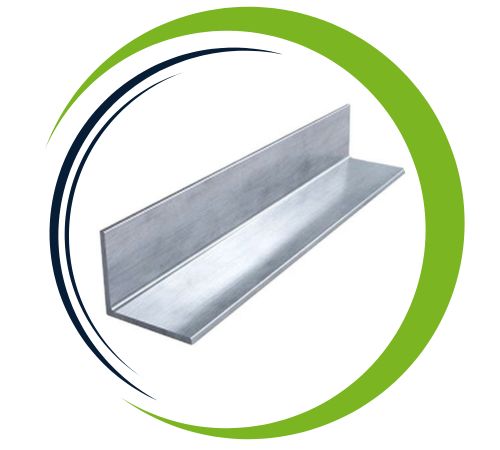

Angle Types: Angles, Angle Bars, Equal Angle, Unequal Angle, L Shape Angles, Equal Leg Angle, Unequal Leg Angle, T Shaped Angle
Channel Types: Channel, Channel Bars, C-channel, U-Channel, Strut Channels, Miscellaneous Channel, MC Channels, Unistrut Channels
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | R56400 |
| Element | C | V | N | Al | Ti | Fe | O |
| Titanium Gr.5 | – | 4 min | – | 6 min | 90 min | 0.25 max | 0.2 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness (Brinell) |
| Titanium Gr.5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Boikanyo Sheets and Plates based in Cape Town, South Africa, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Titanium Grade 5 (Ti-6Al-4V) Angle offers numerous advantages, including exceptional strength, light weight, and excellent corrosion resistance, making it ideal for challenging environments. It is highly resistant to oxidation, ensuring longevity even in harsh conditions like high temperatures and marine environments. Titanium Gr 5 Angle also provides superior fatigue resistance and can withstand extreme stress without deformation. Its biocompatibility makes it suitable for medical applications, while its formability allows for diverse structural uses. These properties make it a preferred choice in aerospace, automotive, and industrial applications.
| Sizes (all Dimensions in milimeter) | Approx Weight Titanium Angle Bar (kilogram/meter) | Titanium Gr 5 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Ti Alloy Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Titanium Grade 5 Angle to meet specific project needs. Our team at Boikanyo Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
**Titanium Grade 5 Angles** are extensively utilized in industries where strength, lightweight design, and corrosion resistance are paramount. In the aerospace sector, they are used in airframe structures, turbine engine components, and landing gear supports. The marine industry relies on them for shipbuilding, offshore equipment, and desalination plants, thanks to their resistance to seawater corrosion. In the chemical and petrochemical fields, they serve in reactors, piping supports, and processing equipment. Additionally, in the medical realm, they are employed in surgical instruments, implants, and orthopedic devices due to their biocompatibility.
