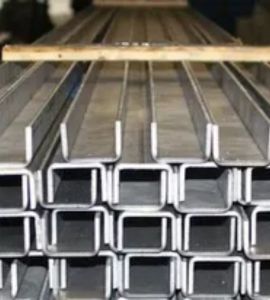

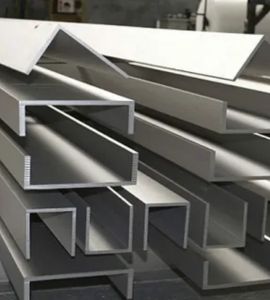

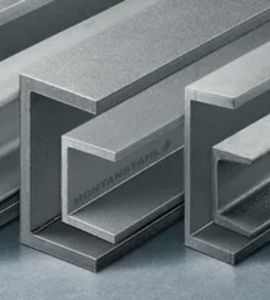

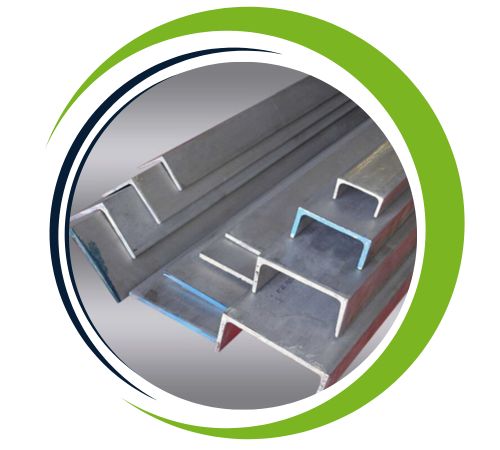

Boikanyo Sheets and Plates, located in Cape Town, South Africa, is a renowned manufacturer and supplier of high-quality metal products catering to various industrial needs. Among their premium offerings is the Stainless Steel 904L Channel, known for its exceptional corrosion resistance, especially in aggressive environments like chemical, petrochemical, and marine industries. With a focus on durability and performance, Boikanyo ensures that their Stainless Steel 904L Channels meet the highest standards, providing reliable solutions for a wide range of challenging applications.
Stainless Steel 904L Channel is an austenitic alloy containing high levels of chromium (19-23%) and nickel (23-28%), along with smaller amounts of molybdenum (4-5%) and copper (1-2%). This composition provides excellent resistance to corrosion, especially in highly acidic environments. Mechanical properties include a tensile strength of around 520 MPa, a yield strength of 220 MPa, and elongation of 40% in 50 mm, ensuring good formability and toughness. The Brinell hardness is approximately 187 HB, making it suitable for demanding applications in chemical, petrochemical, and marine industries.
| Specifications | : | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 904L Angle | : | 5mm to 9mm |
| SS 904L Channel | : | 40mm*20mm~300mm*300mm |
| SS 904L Beam | : | 3″ thru 12.31″ |
| SS 904L Chain | : | 1/8 inch – 1/2 inch Diameter |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2 max | 1 max | 0.040 max | 0.030 max | 19.0-23.0 | 4.0-5.0 max | 23.00 – 28.00 | 1.0-2.0 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Boikanyo Sheets and Plates based in Cape Town, South Africa, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless Steel 904L Channel offers exceptional resistance to corrosion, particularly in harsh environments such as those with high concentrations of acids, chlorides, and sulfides. Its high nickel and molybdenum content provide superior resistance to pitting, crevice corrosion, and stress corrosion cracking. The alloy’s excellent weldability and formability make it ideal for complex structures. With high strength and durability, it is suitable for demanding applications in the chemical, petrochemical, and marine industries. Stainless Steel 904L Channels also maintain their integrity in high-temperature environments, ensuring long-term performance and reduced maintenance costs.
Yes, we offer custom sizes for Stainless Steel 904L Channel to meet specific project needs. Our team at Boikanyo Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Stainless Steel 904L Channel is widely used in industries requiring superior corrosion resistance, especially in environments with high acidity or chloride exposure. Common applications include chemical and petrochemical processing, where it is used in equipment such as heat exchangers, reactors, and storage tanks. It is also ideal for marine environments, such as offshore platforms and shipbuilding, due to its resistance to seawater corrosion. Additionally, Stainless Steel 904L Channels are utilized in power plants, pollution control systems, and pulp and paper industries, ensuring reliable performance in extreme conditions.
