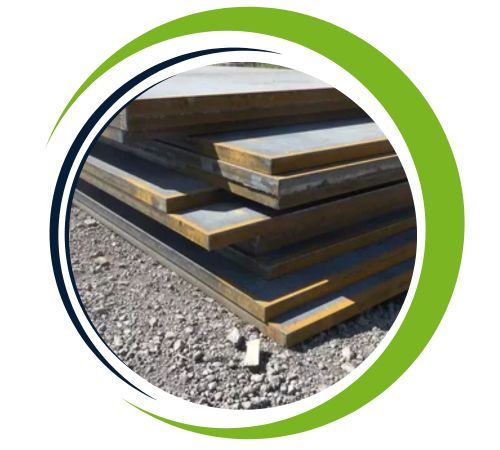

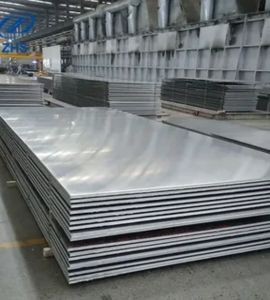

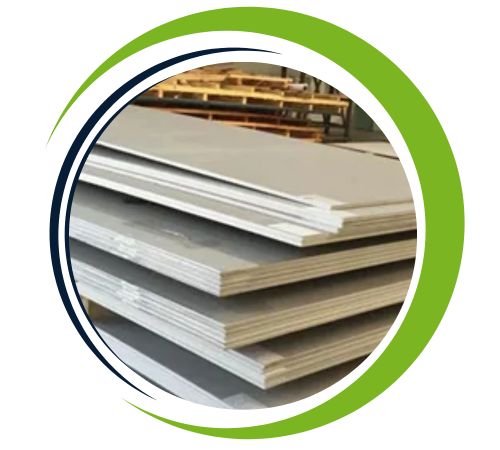

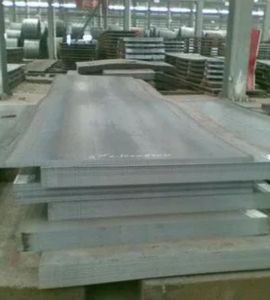

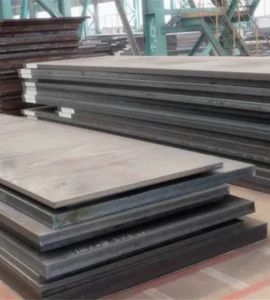

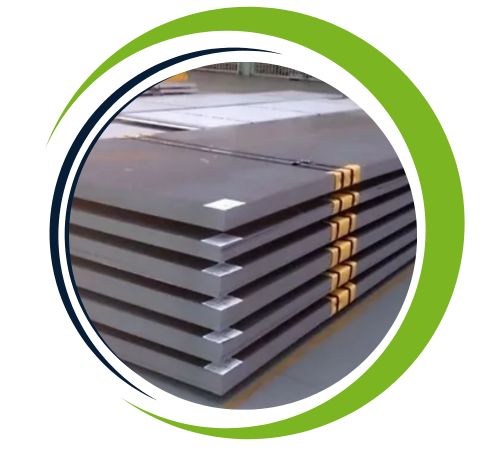

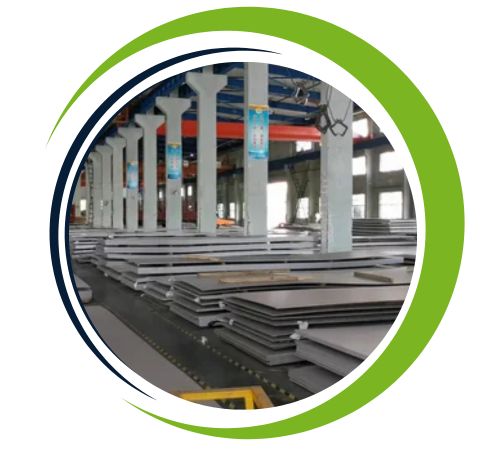

**SA 516 Grade 60** is a carbon steel plate grade recognized under the ASME standard, primarily used for moderate and lower-temperature service in welded pressure vessels. It features controlled levels of **carbon (≤0.21%)**, **manganese (0.55–1.30%)**, **phosphorus (≤0.035%)**, and **sulfur (≤0.035%)**. The mechanical properties include a **minimum yield strength of 260 MPa** and a **tensile strength range of 415–585 MPa**. This material is supplied in a normalized state to boost its toughness and ductility. It showcases excellent notch toughness and is easily weldable using standard techniques, making it ideal for both on-site fabrication and demanding industrial applications.
Grade : ASME SA 516 GR.60 Boiler and Pressure Vessel Steel Plates
Width : 1250mm-3000mm
Thickness : 3mm-600mm
Length : 3000mm-11000mm
Production : Hot-Rolled (HR)
Heat Treatment : Rolled / Normalised/N+T/QT
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 485-620 (70-90) | 260 (38) | 17 | 21 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
SA 516 Grade 60 Sheets and Plates find their place in the fabrication of **boilers, pressure vessels, heat exchangers, storage tanks**, and other essential equipment in the **oil & gas, petrochemical, power generation, and chemical processing** industries. Thanks to its reliable performance in moderate-temperature settings, this grade serves as a cost-effective and trustworthy choice for equipment handling pressurized fluids or gases. Its impressive workability and weldability further enhance its appeal, making it a preferred option for many applications.
SA 516 Grade 60 Sheets and Plates offer several advantages, making them ideal for pressure vessel applications. They provide excellent weldability, ensuring strong and reliable joints in fabrication. With superior notch toughness, they perform well in low to moderate temperature environments. The material exhibits high strength and durability, ensuring resistance to cracking and deformation under stress. Additionally, SA 516 Grade 60 plates are cost-effective, offering good performance at a competitive price. Their versatility makes them suitable for various industries, including oil, gas, and power generation, ensuring long-lasting and safe operation.
Yes, we offer custom sizes for SA 516 grade 60 Sheets and Plates to meet specific project needs. Our team at Boikanyo Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
SA 516 Grade 60 Sheets and Plates are widely used in the fabrication of pressure vessels, boilers, and heat exchangers, especially in industries that require materials capable of withstanding moderate to low temperatures. They are commonly used in the oil, gas, petrochemical, and power generation sectors for applications involving storage tanks, reactors, and piping systems. The plates are ideal for manufacturing pressure vessels, boilers, and other heavy-duty equipment, offering reliable performance in environments where strength, durability, and resistance to pressure are critical.
