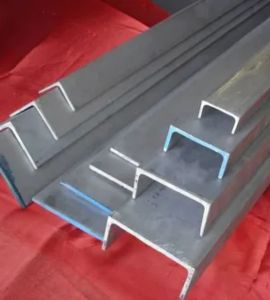

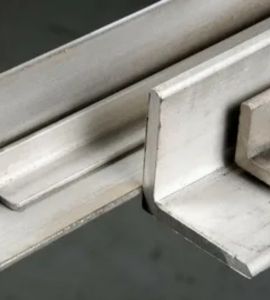

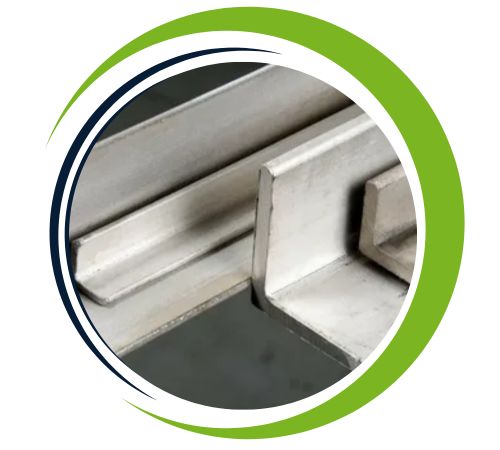

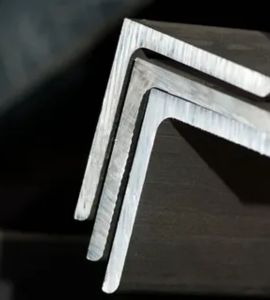

Boikanyo Sheets and Plates is a leading manufacturer and supplier based in Cape Town, South Africa, specializing in high-quality sheets, plates, and metal products. With a strong focus on precision and reliability, we provide top-tier materials for diverse industries, ensuring exceptional performance and durability. Their product range includes the highly sought-after Nickel Alloy 200 Angle, known for its excellent corrosion resistance, high strength, and versatility in extreme environments. We cater to standard and custom requirements, offering superior service and delivery.
Nickel Alloy 200 is a commercially pure nickel alloy consisting of approximately 99% nickel, with trace elements of iron, copper, manganese, and carbon. Known for its excellent corrosion resistance, particularly in alkaline and acidic environments, it offers a tensile strength of 55-80 ksi (380-550 MPa), yield strength of 25-40 ksi (170-275 MPa), and elongation of 30-40%. This alloy provides good ductility, toughness, and high thermal and electrical conductivity, making it ideal for use in applications requiring resistance to corrosion, oxidation, and stress, such as in the chemical, aerospace, and marine industries.
Specifications : ASTM B160 / ASME SB160
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nickel Alloy 200 Angle offers excellent corrosion resistance, particularly against alkaline solutions, fresh water, and organic acids. Its high strength and durability make it ideal for harsh industrial environments, including chemical processing, marine, and aerospace applications. The alloy maintains its mechanical properties at elevated temperatures and resists oxidation, ensuring long-lasting performance. It also provides excellent weldability and formability, making fabricating various shapes easy. Its non-magnetic properties enhance its versatility in electronics and other precision applications, offering reliable performance in demanding conditions.
Nickel alloy 200 angle is widely used in industries that require high corrosion resistance and excellent mechanical properties. Common applications include chemical processing, food processing, marine environments, and aerospace. It is used in manufacturing heat exchangers, reactors, storage tanks, and piping systems. Its resistance to alkalis, acids, and saltwater makes it ideal for chemical industries, while its ability to withstand extreme temperatures suits high-temperature applications. Also, Nickel Alloy 200 Angle is used to produce components and as a material for structural components in harsh environments.
