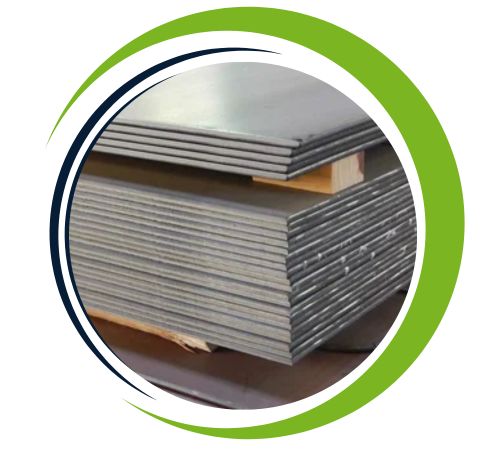

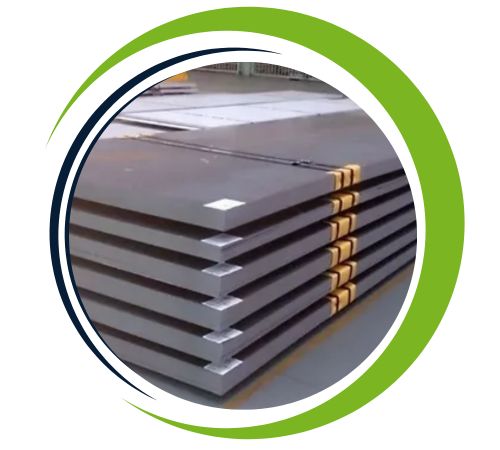

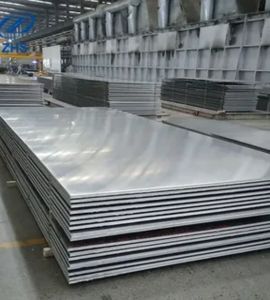

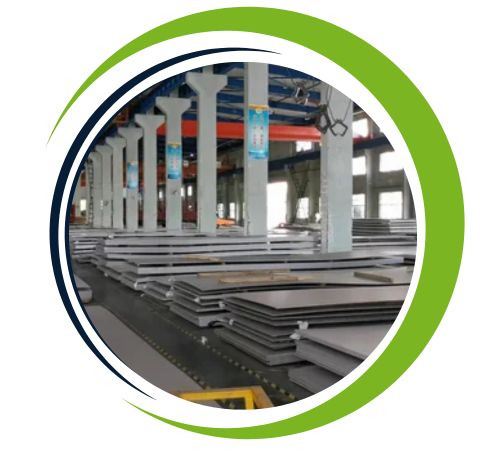

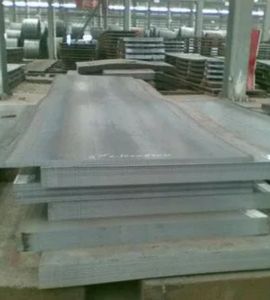

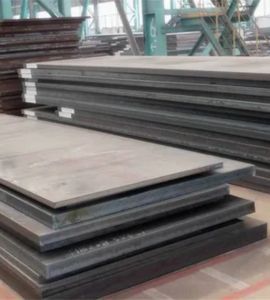

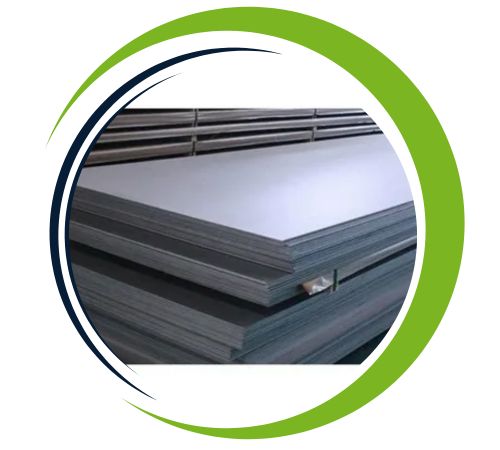

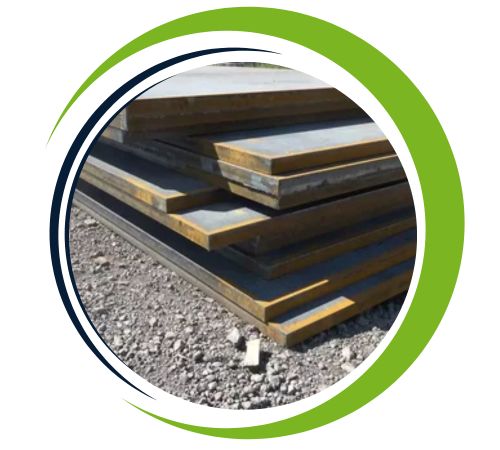

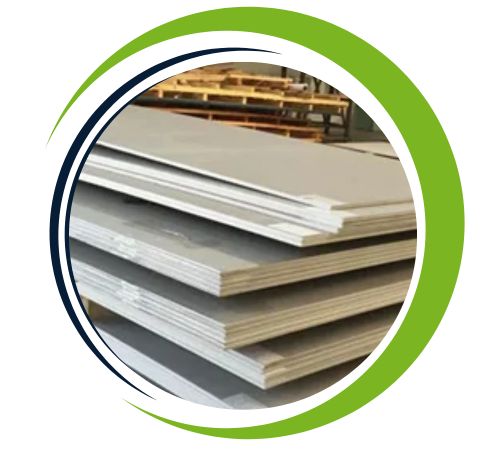

IS 2062 E250 sheets and plates are made from carbon steel with a minimum yield strength of 250 MPa. The chemical composition includes carbon (max 0.23%), manganese (0.60-0.90%), silicon (max 0.40%), phosphorus (max 0.05%), and sulfur (max 0.05%). These sheets and plates exhibit excellent weldability and formability. The mechanical properties include a tensile strength range of 410-550 MPa, elongation of 23% in 200 mm, and hardness up to 170 HB. These properties make IS 2062 E250 suitable for various structural applications in industries like construction and engineering.
| Product Name | Fe 410WB Plates- IS 2062 E250 |
|---|---|
| Standard | IS 2062 |
| Equivalents | 43 D, St 44-3U, E28-4, S275J2G3 |
| Thickness | 6MM to 300MM |
| Width | 1500mm to 4050mm |
| Length | 3000mm to 15000mm |
| Certification | Mill Test Reports Available as per EN 10204 3.1 |
| Element | C.E. Value | Mn | C | S | Si | P | Nb+V+Ti |
| E-250 Gr-B | 0.41 max | 1.50 max | 0.22 max | 0.045 max | 0.40 max | 0.045 max | – |
| E-250 Gr-A | 0.42 max | 1.50 max | 0.23 max | 0.050 max | 0.40 max | 0.050 max | – |
| E-250 Gr-C | 0.39 max | 1.50 max | 0.20 max | 0.040 max | 0.40 max | 0.040 max | – |
| Grade | Tensile | Min Yield | Elongation | Thickness(mm) | Min Impact Energy | |
| Fe 410WB | 410Mpa | Min 250Mpa | 23% | ＜20mm | 27J | 0 |
| 410Mpa | Min 240Mpa | 23% | 20mm-40mm | 27J | 0 | |
| 410Mpa | Min 230Mpa | 23% | ＞40mm | 27J | 0 | |
| EN10025(93) | EN10025(90) | JIS3101 | BS4360 | DIN 17100 | NFA 35-501 |
| S275J2G3 | – | – | 43 D | St 44-3U | E28-4 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
The Stainless Steel 201 Angle is an austenitic alloy primarily made of iron, containing about 16–18% chromium, 3.5–5.5% manganese, 4–5.5% nickel, along with trace elements like nitrogen and carbon. It boasts excellent toughness, moderate resistance to corrosion, and high yield strength. Typical mechanical properties include a tensile strength of around 520 MPa, yield strength of 275 MPa, and good elongation of about 45%. SS 201 is more affordable than 300-series grades due to its lower nickel content, yet it still performs well for many structural and decorative applications.
IS 2062 E250 sheets and plates offer several advantages, making them ideal for various industrial applications. Their high strength, with a yield strength of 250 MPa, ensures durability and reliability. The excellent weldability and formability allow for easy fabrication, making them versatile for construction and engineering projects. These sheets and plates have good resistance to corrosion and can withstand harsh environments. Additionally, their cost-effectiveness and availability in various sizes and thicknesses make them a popular choice for structural, fabrication, and manufacturing applications, ensuring long-term performance and stability.
Yes, we offer custom sizes for IS 2062 E250 Sheets and plates to meet specific project needs. Our team at Boikanyo Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Thanks to its strength, affordability, and attractive finish, Stainless Steel 201 Angle is widely utilized across various industries. It’s perfect for structural frameworks, support brackets, industrial shelving, and reinforcement in construction. In architectural settings, it’s often used for trim, edging, and decorative elements due to its sleek appearance and resistance to corrosion. Additionally, you can find SS 201 Angles in food processing equipment, railway cars, kitchen appliances, and storage systems. Its durability and ease of use make it suitable for both indoor and outdoor applications, especially in mildly corrosive environments where cost-effective performance is key.
