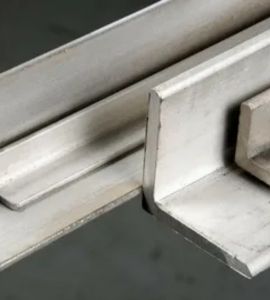

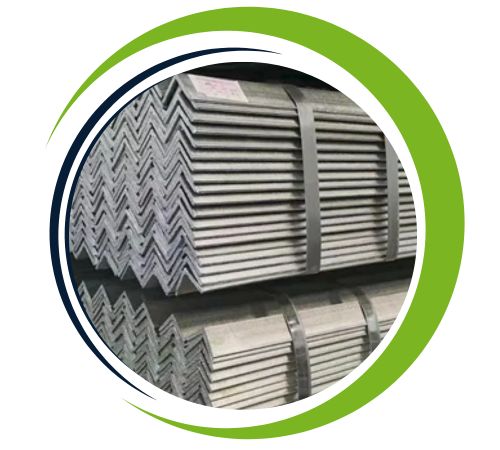

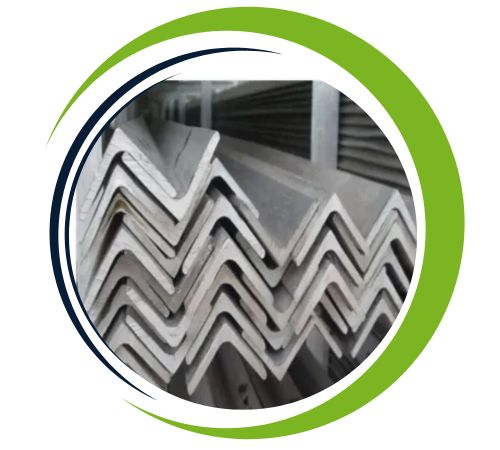

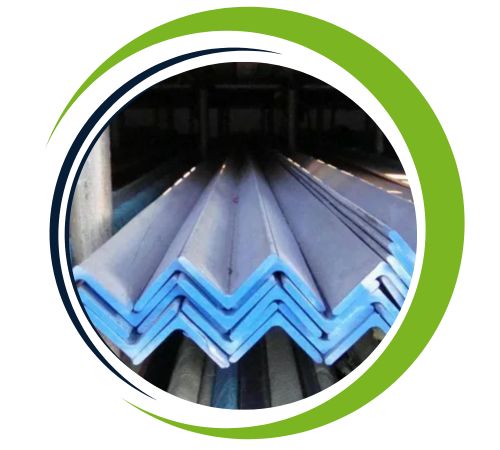

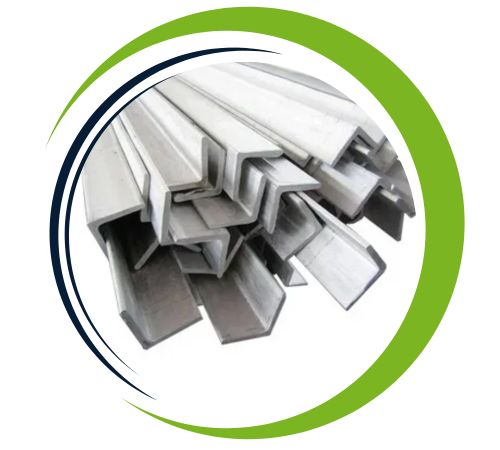

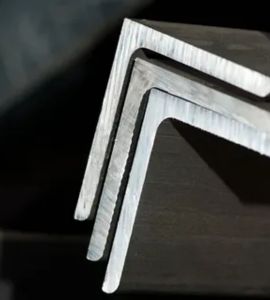

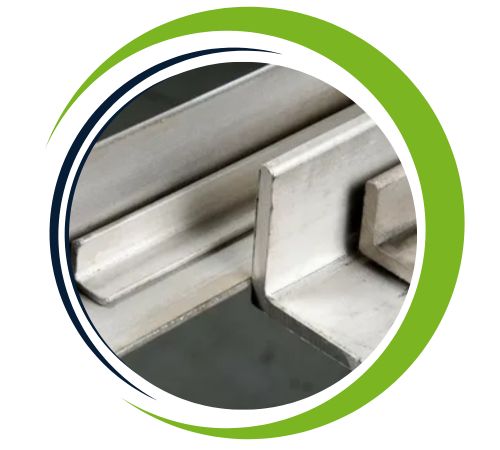

Boikanyo Sheets and Plates, located in Cape Town, South Africa, stands out as a top manufacturer and supplier of **Inconel 600 Angles**. These angles are celebrated for their remarkable resistance to corrosion, impressive strength at high temperatures, and overall durability. Crafted from a nickel-chromium alloy, they are engineered with precision to perform reliably in tough environments like chemical processing, marine settings, power generation, and various industrial applications. Boikanyo Sheets and Plates prides itself on utilizing advanced manufacturing techniques, maintaining strict quality control, and following international standards, ensuring that every Inconel 600 angle consistently delivers outstanding performance. The company caters to a range of industries, including chemical processing, aerospace, marine, and oil and gas, providing versatile and long-lasting Inconel 600 angles that are perfect for critical structural and mechanical uses.
**Inconel 600 Angles** are primarily made up of nickel, with 14–17% chromium and 6–10% iron, along with small amounts of manganese, silicon, and carbon. This unique blend gives them excellent tensile strength, ranging from 515–690 MPa, along with high yield strength and exceptional toughness. These angles are known for their outstanding resistance to oxidation, pitting, and stress corrosion cracking, especially in acidic and high-temperature conditions. Their mechanical properties allow them to maintain their structural integrity even under thermal cycling, mechanical stress, and corrosive environments, making them a perfect fit for demanding industrial applications.
Specifications : ASTM B166 / ASME SB166
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)

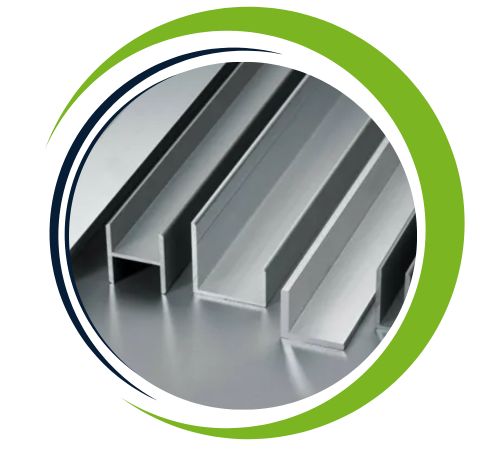

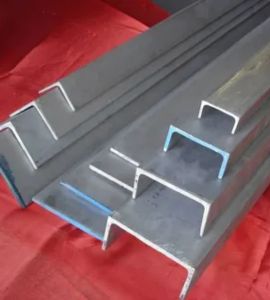

Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Element | Ni | C | Mn | Cu | S | Si | Cr | Fe |
| Inconel 600 | 72.0 min | 0.15 max | 1.0 max | 0.5 max | 0.015 max | 0.5 max | 14.0 – 17.0 | 6.0 – 10.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness (Brinell) |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Boikanyo Sheets and Plates based in Cape Town, South Africa, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 600 Angle offers several advantages, including excellent resistance to oxidation and corrosion, particularly in high-temperature environments. Its ability to withstand extreme temperatures up to 2,000°F (1,093°C) makes it ideal for applications in industries such as aerospace, chemical processing, and power generation. The alloy exhibits high strength and durability, maintaining its mechanical properties even under stress. Additionally, Inconel 600 is highly resistant to sulfur compounds and chloride stress corrosion cracking, ensuring long-term performance and reliability. These qualities make it a preferred material for demanding and harsh environments.
Yes, we offer custom sizes for Inconel 600 Angle to meet specific project needs. Our team at Boikanyo Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) | Inconel Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
You’ll find **Inconel 600 Angles** widely used across industries like chemical processing, marine engineering, aerospace, and power generation, thanks to their impressive combination of corrosion resistance, mechanical strength, and high-temperature performance. They are ideal for creating structural supports, frameworks, piping supports, furnace components, and parts for machinery that face oxidizing and corrosive conditions. Additionally, these angles are utilized in pumps, valves, turbines, and high-performance industrial equipment where long-lasting durability and reliability are crucial. Their toughness, formability, and ability to withstand harsh environments make them a go-to choice for many applications.
