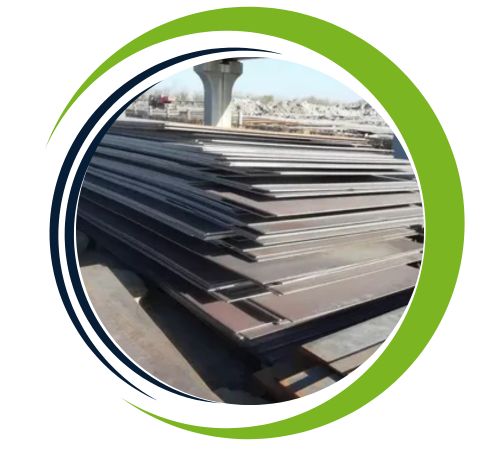

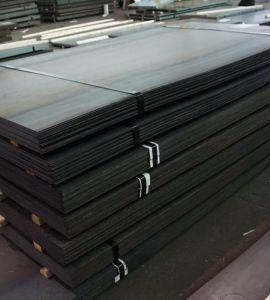

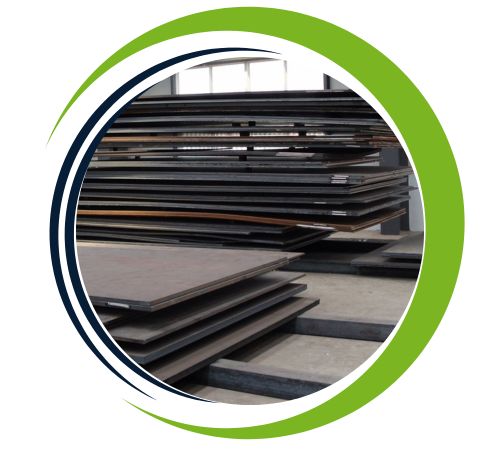

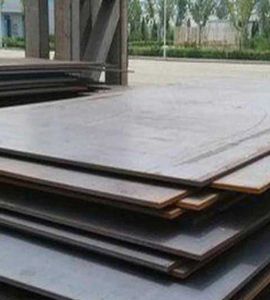

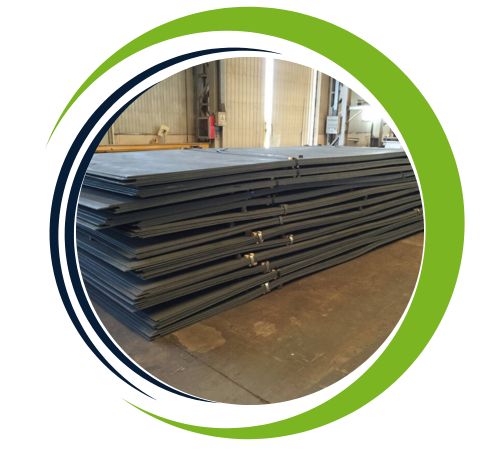

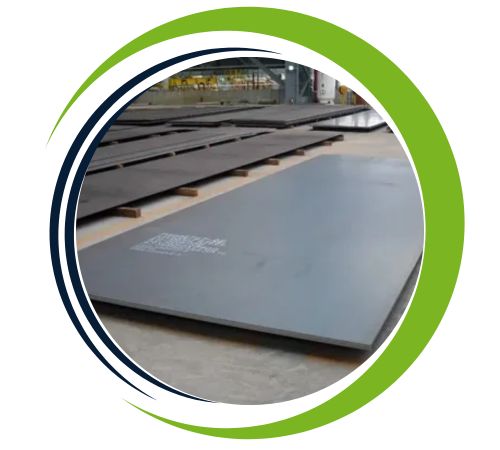

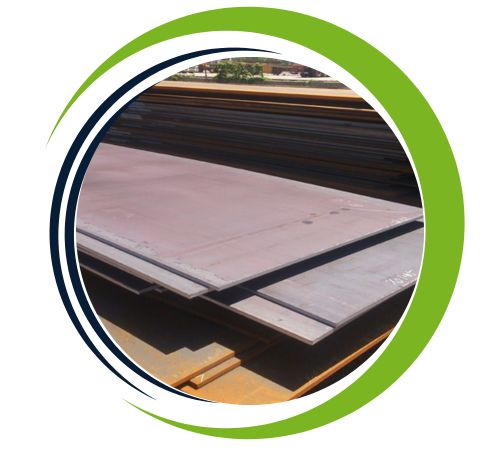

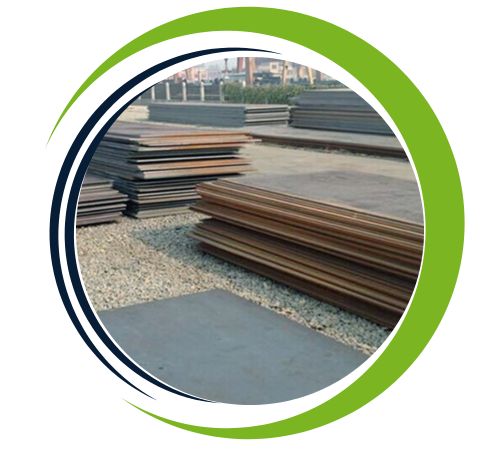

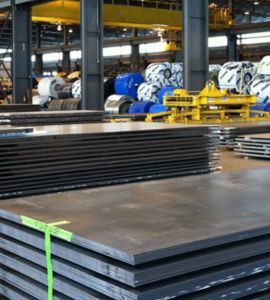

Boikanyo Sheets and Plates, located in Cape Town, South Africa, stands out as a trusted manufacturer and supplier of medium carbon steel products, particularly **EN9 Sheets and Plates**. Renowned for their impressive wear resistance, strength, and machinability, these sheets and plates are perfect for engineering projects that demand higher hardness and durability. Offered in a range of thicknesses and sizes, Boikanyo’s EN9 Sheets and Plates are crafted to meet rigorous quality standards, ensuring they perform reliably in both structural and mechanical applications.
EN9 is a medium carbon steel, typically containing 0.50–0.60% carbon, which provides high tensile strength and enhanced toughness when heat-treated. It can be hardened and tempered to reach strengths between 550–700 MPa, all while maintaining good machinability and moderate weldability. This material is ideal for situations where strength and wear resistance take precedence over flexibility.
| Thickness | from 3mm up to as thick as 150mm |
|---|---|
| Size | from 2000 x 1000mm up to 4000 x 2000mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | -52° C |
| Process of Manufacturing | Hot-Rolled (HR) |
| Grade | Cr | C | Ni | Si | S | Mn | P | Mo |
| EN – 9 | – | .50 – .60 | – | .05 – .35 | .040 MAX | .50 – .80 | .040 MAX | – |
| Heat Treatment | Condition Tons/SQ.inch | Tensile Stress RE MPA | RP0.2 MPA | A min on 5.65so | Impac | Hardness HB | Limited Ruling Section mm | |
| IZODFT.L.b | KCV Joules | |||||||
| Normalise | 45 | 700 | – | 12 | – | – | 201-255 | 63 |
| 39 | 600 | – | 13 | – | – | 170/223 | 250 | |
| R | 45/55 | 700/850 | 385 | 14 | – | – | 201/277 | 100 |
| S | 50/60 | 775/925 | 450 | 14 | – | – | 223/277 | 63 |
| T | 55/65 | 850/1000 | 555 | 12 | – | – | 248/302 | 19 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Boikanyo Sheets and Plates based in Cape Town, South Africa, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
EN 9 sheets and plates offer a number of advantages including excellent tensile strength and hardness, making them suitable for heavy duty applications The high carbon content of the alloy provides excellent durability and corrosion resistance, and provides long-term stability in hard surfaces. EN 9 also provides excellent machining, making it easier to work in a variety of shapes and sizes. It exhibits excellent fatigue resistance, making it ideal for components subjected to repeated stresses, such as gears, shafts and axles. Because of its versatility and reliability, EN 9 is widely used in the automotive engineering and construction industry.
Yes, we offer custom sizes for EN 9 Sheet and Plates to meet specific project needs. Our team at Boikanyo Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
You’ll often find EN9 Sheets and Plates being used in the production of shafts, gears, bolts, crankshafts, keys, and various other general engineering components. They’re particularly well-suited for the automotive, machinery, construction, and agricultural industries, where durability under mechanical stress is crucial. Boikanyo’s EN9 Sheets and Plates offer a reliable and cost-effective solution for all your medium carbon steel needs.
