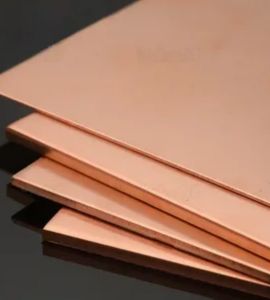

Boikanyo Sheets and Plates, located in Cape Town, South Africa, is a trusted manufacturer and supplier of top-notch non-ferrous metal products, including Copper Sheets and Plates. Renowned for their exceptional thermal and electrical conductivity, resistance to corrosion, and ease of shaping, these copper products are crafted with precision to adhere to strict industrial standards. With a variety of thicknesses and sizes available, Boikanyo’s Copper Sheets and Plates deliver reliable performance and durability for a wide range of applications across different industries.
The copper sheet and plate are mainly pure copper (Cu), with a specific purity of 99.9%. Copper is known for its excellent electrical and thermal conductivity, corrosion resistance and high ductility. The mechanical properties of copper include a tensile strength of about 210 MPa, excellent ductility and formability, which makes it suitable for shaping and welding Copper also has high fatigue resistance and is non-magnetic. These properties make copper sheets and plates ideal for a variety of industrial applications requiring electrical conductivity, heat exchanger and durability.
| ASTM Specification | ASTM B152 UNS C12200, ASME SB152, MSRR, AMS, BS |
|---|---|
| Specification | MSRR, AMS, BS, ASTM B152 / ASME SB152 |
| ASTM Standard Designations for C10200 OFHC Copper plate and sheet | ASTM B152 C10100 meets ASTM F68 specification. |
| Length & Sizes | 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2m, 2.44m, 3m, 36″ X 120″ or 48″ X 144″, Cut to size available |
| Thickness | 0.1mm to 100 mm Thk |
| Sheet Width | 36” widths – .032”, .0625”, .125” |
| Plate Width | 10-2500mm |
| AMS | AMS |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Temper | Annealed, 1/4-Hard, 1/2-Hard, 3/4-Hard, Full Hard, Hard as Rolled, Spring |

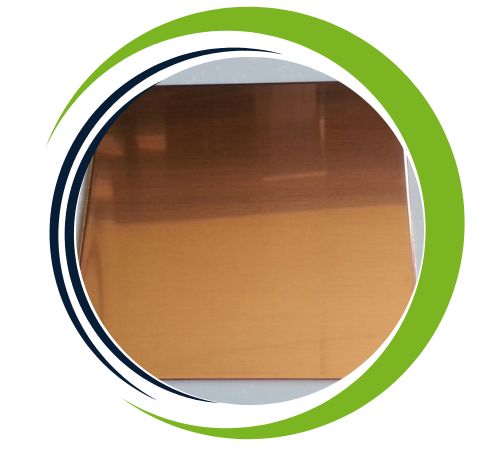

| Condition | Polished on both sides |
| Finish | Bare/Standard, Hot Tin Dipped, Tin Plated, Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

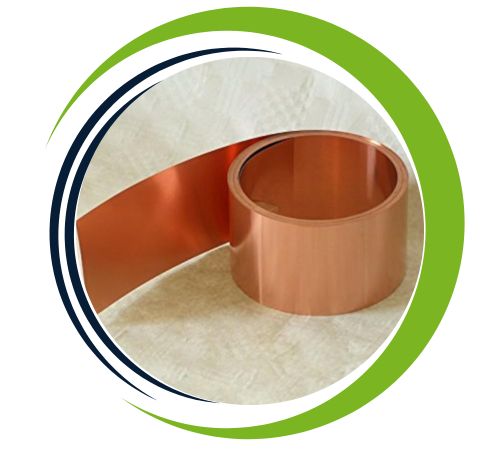

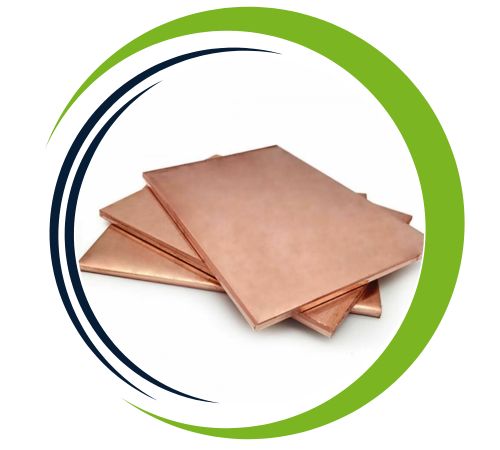

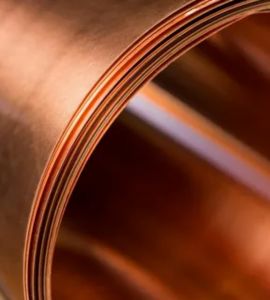

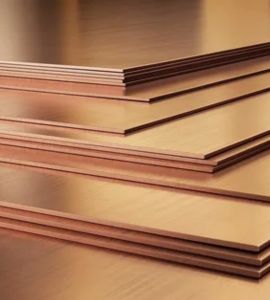

| Stock in form of | C101 Copper Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Gauges | .0005″ to .010″ .0005″, .0007″, .001″, .0014″, .002″, .003″, .004″, .005″, .006″, .008″, .010″ |
| Proof Stress | 50 to 340 MPa |
| Tensile Strength | 200 to 360 MPa |
| Hardness | 40 to 110 HV |
| Elongation | 50-5 % |
| Density | 8.92 g/cm³ |
| Melting Point | 1083 °C |
| Thermal Expansion | 16.9 x10^-6 /K |
| Modulus of Elasticity | 117 GPa |
| Thermal Conductivity | 391.1 W/m.K |
| Electrical Resistivity | 0.0203 x10^-6 Ω .m |
| Machinability | Average |
| Workability – Cold | Excellent |
| Weldability – Gas | Good |
| Weldability – Arc | Not recommended |
| Weldability – Resistance | Not recommended |
| Brazeability | Excellent |
| Copper profiling | To provide a full profiling service we use numerous profiling methods including:
|
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| THICKNESS | 4’X 2′ | 2M X 1M | 2500MM X 12500MM |
|---|---|---|---|
| Size | Weight per sheet in Kg | ||
| 0.35 | 2.37 | ||
| 0.4 | 2.68 | 7.14 | |
| 0.45 | 2.99 | 8.04 | |
| 0.5 | 3.3 | 8.93 | |
| 0.55 | 3.61 | 9.8 | |
| 0.6 | 3.92 | 10.72 | |
| 0.7 | 4.64 | 12.5 | |
| 0.8 | 5.3 | 14.29 | |
| 0.9 | 6.0 | 16.07 | |
| 1.0 | 6.6 | 17.86 | |
| 1.2 | 7.9 | 21.43 | 34 |
| 1.4 | 9.3 | ||
| 1.6 | 10.6 | 28.56 | 45 |
| 2.0 | 13.3 | 35.72 | 56 |
| 2.5 | 16.5 | 44.65 | 70 |
| 3.0 | 19.9 | 53.58 | 84 |
| 3.25 | 21.6 | 58.05 | 91 |
| 4.0 | 26.5 | 71.44 | 112 |
| 4.76 | 32.3 | 85.0 | 133 |
| 5.0 | 33.1 | 89.3 | 140 |
| 6.0 | 39.8 | 107.16 | 168 |
| 6.35 | 42.2 | 113.4 | 177 |
| 8.0 | 54 | 224 | |
| 9.525 | 64 | 266 | |
| 10.0 | 279 | ||
| 12.0 | 215 | 335 | |
| 12.7 | 227 | ||
| 15.8 | 283 | ||
| 16.0 | 268 | ||
| 19.0 | 340 | ||
| 20.0 | 358 | ||
| 22.0 | 393 | ||
| 25.0 | 447 | ||
| 30.0 | 536 | ||
| 40.0 | 715 | ||
| 45.0 | 804 | ||
| 50.0 | 893 | ||
| 75.0 | 1340 | ||
| 100.0 | 1787 | ||
| 150.0 | 2680 | ||
Copper sheets and plates offer many advantages including excellent electrical and thermal conductivity, making them ideal for electrical and heat transfer applications They are highly corrosion resistant, ensuring durability last longer in harsh environments, and have excellent formability, making them easier to assemble and manufacture. Copper’s ductility allows for stronger materials, while its non-magnetic properties enhance the efficiency of electrical systems. The material also exhibits high fatigue resistance, providing long-lasting performance. In addition, lead is recyclable, making it environmentally friendly. These properties make copper sheets and plates valuable in industries such as electronics, manufacturing and construction.
Copper Sheets and Plates find extensive use in electrical engineering, roofing, plumbing, and the manufacturing of industrial equipment. They are crucial for applications like busbars, switchgear, heat exchangers, flashing, and architectural detailing. Furthermore, these sheets and plates are utilized in marine, automotive, and electronics sectors where conductivity and corrosion resistance are vital. Boikanyo’s Copper Sheets and Plates provide a reliable and efficient solution for both functional and decorative purposes.
